編織不銹鋼網
分享:
0318-7593111

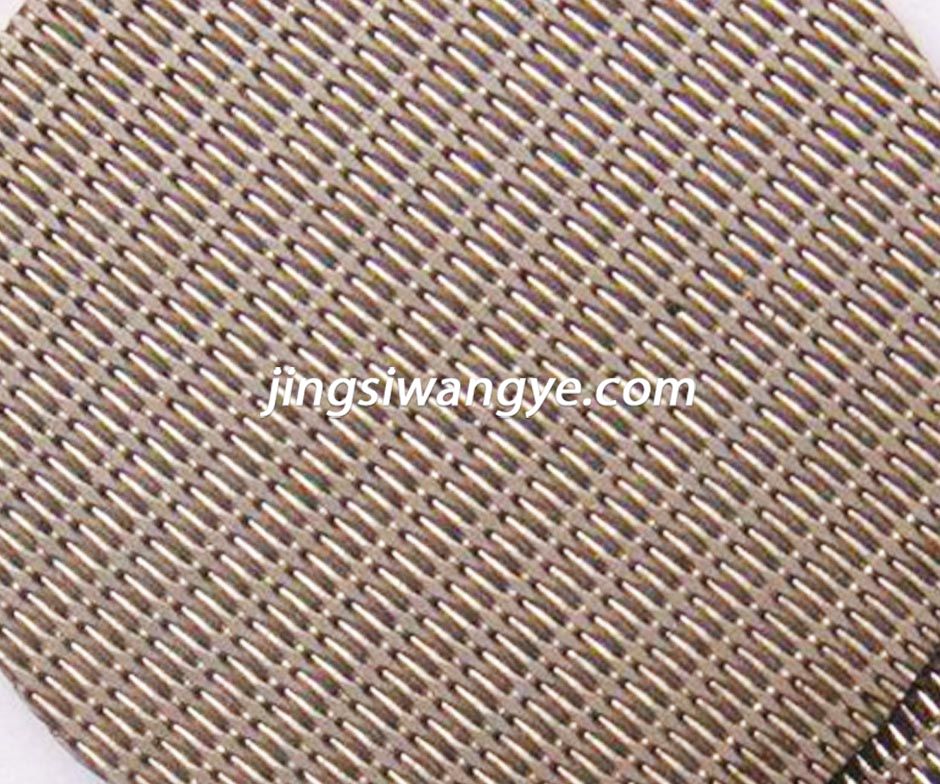

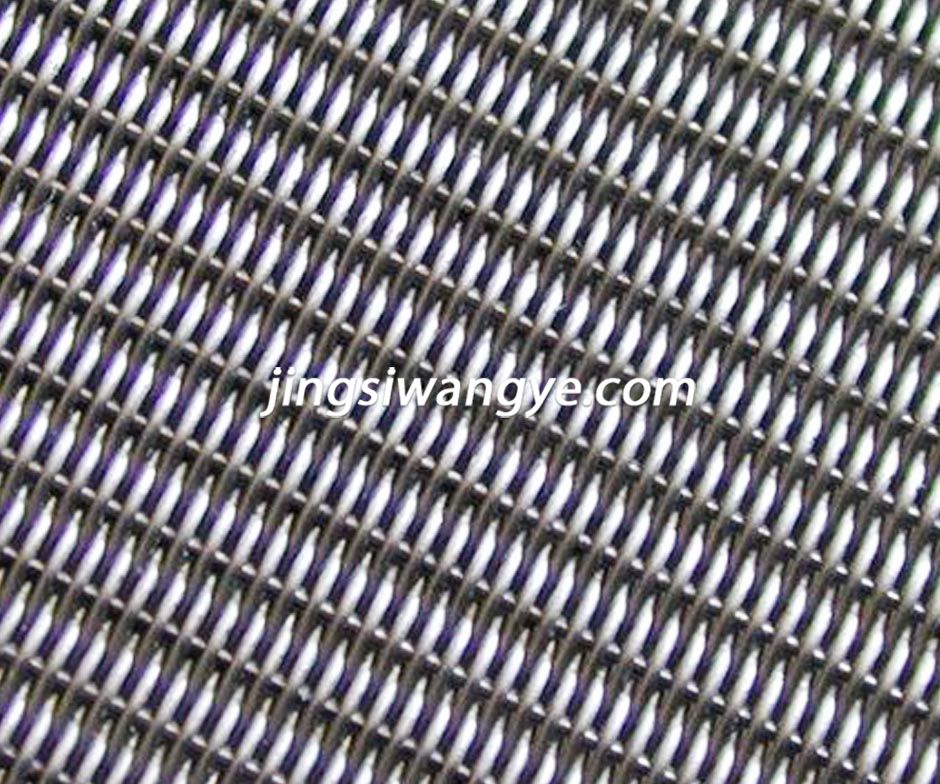

不銹鋼荷蘭網又稱密網，在江南或國外被稱為“荷蘭布”。它由優質不銹鋼絲制成。
平紋不銹鋼密網(素密)、斜紋編織不銹鋼密網(細密)、竹編密網、不銹鋼密對比編織網(又稱荷蘭密對比網輸送帶)材料:SUS302、304,304 L、316 316L等
  |
 |
耐酸、耐堿、耐高溫、抗拉耐磨性能強、過濾性能穩定、精度高、精度高、具有特殊的過濾性能。
| 編織荷蘭網 | ||||
| 數量 | 經緯數 | 直徑 | 孔徑 | 重量(kg/㎡) |
| 32# | 8 x 62 | 0.63mm x 0.45mm | 300 | 5.42 |
| 40# | 10 x 79 | 0.50mm x 0.355mm | 250 | 3.16 |
| 48# | 12 x 64 | 0.58mm x 0.40mm | 280 | 2.9 |
| 55# | 14 x 88 | 0.40mm x 0.30mm | 180 | 2.54 |
| 76# | 19 x 140 | 0.315mm x 0.20mm | 140 | 1.88 |
| 80# | 20 x 300 | 0.35mm x 0.20mm | - | 3.6 |
| 95# | 24 x 110 | 0.355mm x 0.25mm | 120 | 2.45 |
| 100# | 25 x 140 | 0.28mm x 0.20mm | 100 | 1.95 |
| 120# | 30 x 150 | 0.25mm x 0.18mm | 80 | 1.68 |
| 140# | 35 x 175 | 0.224mm x 0.16mm | 71 | 1.52 |
| 160# | 40 x 200 | 0.20mm x 0.14mm | 60 | 1.40 |
| 180# | 45 x 250 | 0.16mm x 0.112mm | 56 | 1.09 |
| 200# | 50 x 250 | 0.14mm x 0.11mm | 53 | 1.04 |
| 220# | 55.5 x 280 | 0.14mm x 0.10mm | 50 | 0.92 |
| 240# | 65 x 330 | 0.11mm x 0.08mm | 36 | 0.71 |
| 280#(1) | 70 x 350 | 0.11mm x 0.08mm | 35 | 0.72 |
| 280#(2) | 70 x 385 | 0.11mm x 0.07mm | 32 | 0.75 |
| 300# | 78 x 700 | 0.11mm x 0.08mm | 30 | 1.39 |
| 315#(1) | 80 x 400 | 0.10mm x 0.065mm | 40 | 0.62 |
| 315#(2) | 80 x 600 | 0.10mm x 0.06mm | - | - |
| 315#(3) | 80 x 800 | 0.15mm x 0.04mm | - | - |
| 320# | 81 x 780 | 0.10mm x 0.07mm | 30 | 1.22 |
| 354# | 90 x 550 | 0.12mm x 0.05 | - | - |
| Breadth: 1-1.6m | ||||
| Twill weaving dutch wire mesh | ||||
| Filter mesh number | Mesh number(warp x weft) | Diameter(warp x weft) | Aperture(um) | Weight(kg/㎡) |
| 360# | 91 x 787 | 0.10mm x 0.07 | 25 | 1.24 |
| 400# | 101 x 900 | 0.10mm x 0.063 | 20 | 1.22 |
| 472# | 120 x 400 | 0.10mm x 0.075 | - | - |
| 500# | 127 x 1100 | 0.07mm x 0.05 | 17 | 0.81 |
| 630# | 160 x 1500 | 0.063mm x 0.04 | 15 | 0.62 |
| 650#(1) | 165 x 400 | 0.071mm x 0.06 | - | - |
| 650#(2) | 165 x 600 | 0.071mm x 0.05 | - | - |
| 650#(3) | 165 x 800 | 0.071mm x 0.05 | 25 | - |
| 650#(4) | 165 x 1100 | 0.071mm x 0.045 | - | - |
| 650#(5) | 165 x 1400 | 0.071mm x 0.04 | 16 | 0.76 |
| 685# | 174 x 1700 | 0.063mm x 0.032 | 13 | 0.61 |
| 787#(1) | 200 x 600 | 0.071mm x 0.06 | - | - |
| 787#(2) | 200 x 800 | 0.071mm x 0.06 | - | - |
| 787#(3) | 200 x 1400 | 0.071mm x 0.04 | 12 | 0.8 |
| 795# | 202 x 1760 | 0.05mm x 0.032 | 10 | 0.6 |
| 850# | 216 x 1860 | 0.045mm x 0.030 | 9 | - |
| 1000# | 254 x 2000 | 0.04mm x 0.028 | 8 | 0.5 |
| 1125# | 285 x 2235 | 0.036mm x 0.025 | 7 | - |
| 1228# | 312 x 2100 | 0.035mm x 0.025 | - | - |
| 1250# | 318 x 2235 | 0.036mm x 0.025 | - | - |
| 1280# | 325 x 2300 | 0.035mm x 0.025 | 5 | 0.45 |
| 1575# | 400 x 3100 | 0.035mm x 0.019 | 3 | - |
| Breadth: 1-1.6m | ||||
